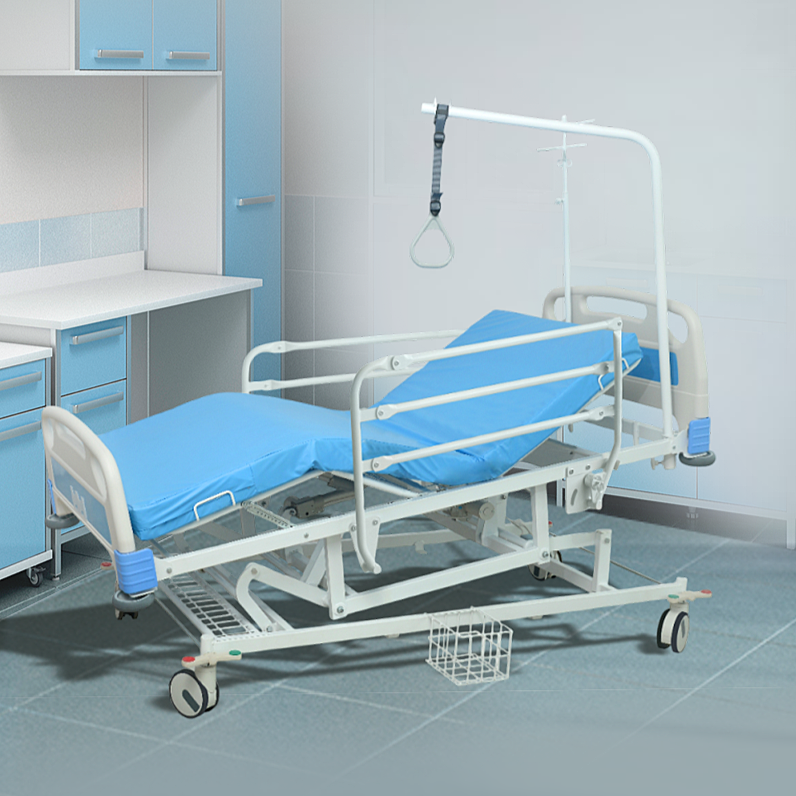

Medical bed with electric drive "Yunova-4E" c1097m/1P

Overall dimensions (LxWxH), mm:
- without additional equipment: 220 x 1007 x 1015..1440;
- with Balkan frame: 2205 x 1007 x 1955..2380;
- with adjustable bracket: 2205 x 1007 x 1775..2200.
Maximum load, kg: 240.
Product weight, kg: 130.

Skeleton:
- profile tube 50 x 30 x 2mm;
- four-section bed;
- metal mesh made of steel rod ø5mm with cells 50 x 80 mm;
- backrest material (quick-release) - plastic;
- electric lifting of the bed bed in the range of 500-950 mm;

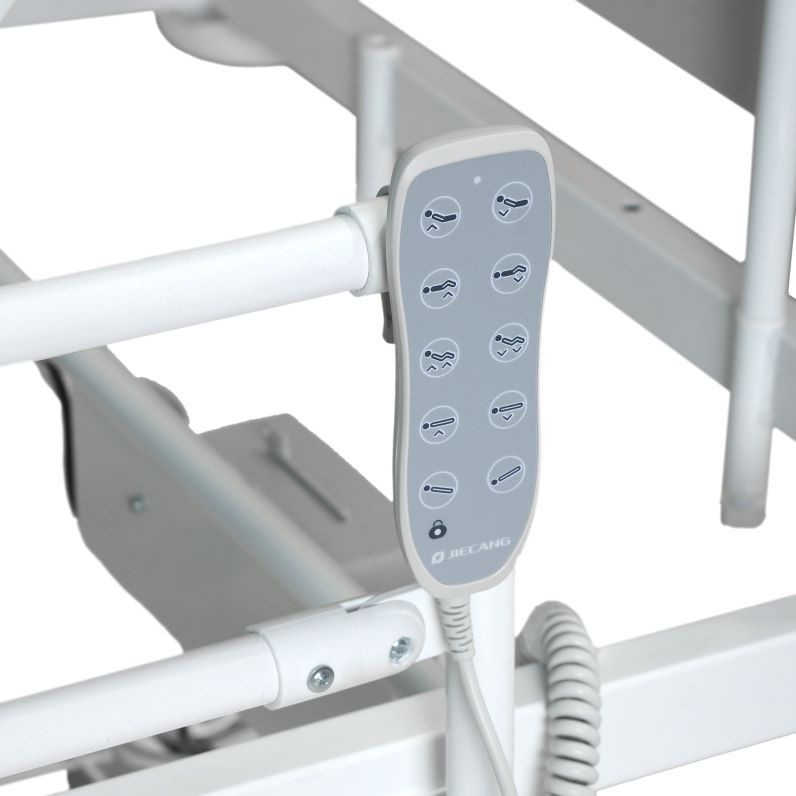

- adjustment of lifting sections by electric drive:
  dorsal - at least 70 °
  intermediate temperature - not less than 55 °;
- adjustment of the foot section 45 ° (2 height meters);
- Trendelenburg function (tilt of the bed at least 15 °) by electric drive;
- anti-Trendelenburg function (bed tilt not less than -15 °) by electric drive;
- equipped with a mattress (100 mm foam sheet) in a moisture-resistant, vapor-permeable mattress pad (vinyl skin);

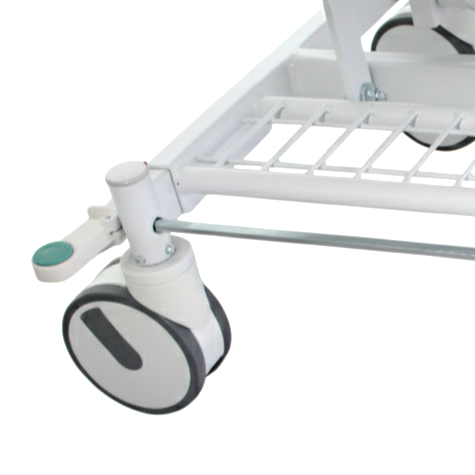

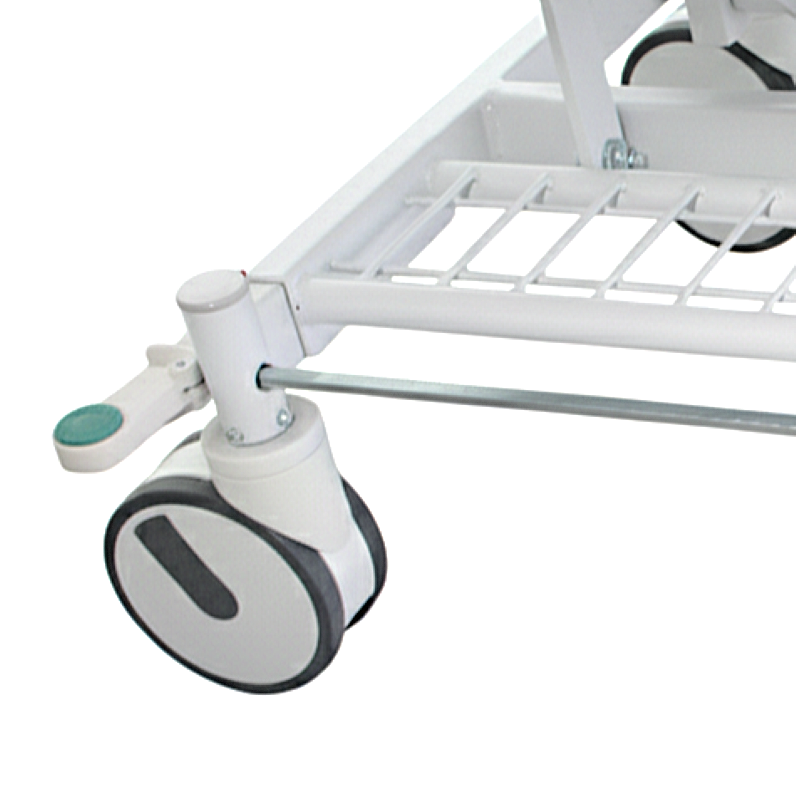

- transportability: 4 wheel supports ø 150 mm (self-aligning, with a pair of mechanical locking for a hexagon).

Possible additional options:
- removable folding side guards;
- telescopic infusion stand;
- Balkan frame or portable bracket;
- a stand for a vessel; a urine receptacle.
